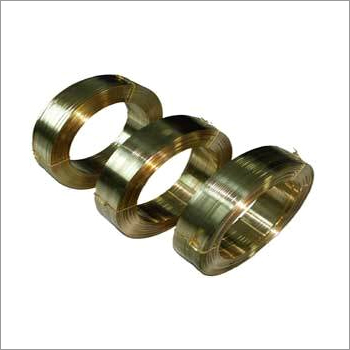

The offered brass flat wire is extensively used in automobile, electrical and electronic applications. This wire is great conductor of electricity due to very low resistivity property. It is made available in degree of width, thickness, and length to satisfy client varied requirements. This wire is known for high ductility, uniform thickness, great tensile strength, good machinability and good shear strength. High malleability and easy to cold work characteristics makes this wire suitable for punching work. This wire is also good for brazing, soldering, welding and crimping. The provided brass flat wire is also used to make pins, springs, clips and precision parts.
And suitable for electronic industries for punching work.
Equivalent Specification | ||||||
Germany DIN | Europe EN | Inter.StandardOrg.ISO | USA UNS | Japan JIS | France NS | United Kingdom BS |
CuZn37 | CuZn37 | CuZn37 | C27200 | C2720 | CuZn37 | CZ108 |
CuZn30 | CuZn30 | CuZn30 | C26000 | C2600 | CuZn30 | CZ106 |
Chemical Composition | CuZn37 | CuZn30 |
Copper | 62-64% | 68-71% |
Lead | 40 ppm (max) | 40 ppm (max) |
Iron | 100 ppm (max) | 100 ppm (max) |
Zinc | Rem | Rem |
Impurities | 0.2 Max | 0.2 Max |
Size: Available | ||||
| Min | Max | Tolerence |
|
Width: | 2.5 mm | 10 mm | +/-0.03 mm |
|
Thickness | 0.80mm | 2.00mm | +/-0.02mm |
|
Hardness | 90 HV | 170HV |
|
|
Coil Weight |
| 30-50 Kgs |
|
|
Coil I.D. |
| 300 mm |
|
|
Coil Width |
| 100 mm |
|
|
